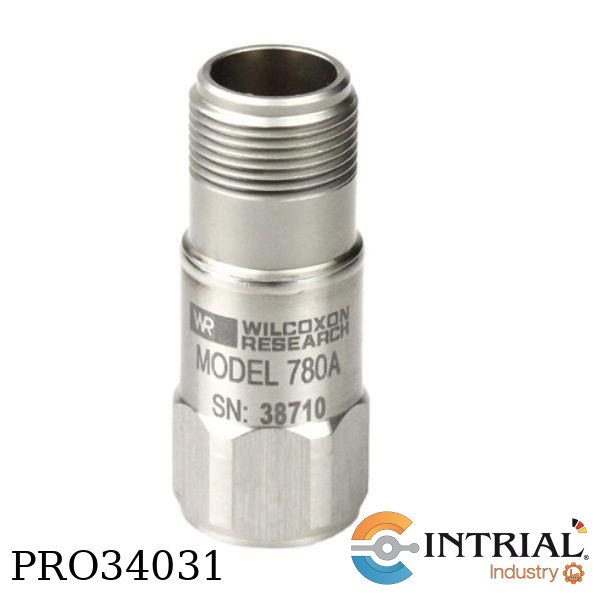

Sensor de Vibracion, 100 mv/g
COMPACT GENERAL ACCELEROMETER
Brand: WILCOXON
PURPOSE ACCELEROMETER
Sensitivity, ± 5%, 25°C 100 mV/g
Acceleration range 80 g peak
Amplitude nonlinearity 1%
Frequency response:
± 5%..3 - 5,000 Hz
± 10%..1 - 9,000 Hz
± 3 Db.. 0.5 - 14,000 Hz
Resonance frequency 30 kHz
Transverse sensitivity, max 5% of axial
Temperature response: –55°C.. –20%
+120°C.. +10%
Power requirement:
Voltage source: 18 - 30 VDC
Current regulating diode: 2 - 10 mA
Output impedance, max 100 Ω
Bias output voltage 12 VDC
Grounding case isolated, internally shielded
Temperature range –55° to +120°C
Vibration limit 500 g peak
Shock limit 5,000 g peak
Electromagnetic sensitivity, equiv. g, max 70 μg/gauss
Sealing hermetic
Base strain sensitivity, max 0.0002 g/μstrain
Sensing element design PZT, shear
Weight 62 grams
Case material 316L stainless steel
Mounting 1/4-28 UNF tapped hole
Output connector 2 pin, MIL-C-5015 style
Mating connector R6 type
Recommended cabling J10 / J9T2A
| Marca: WILCOXON |
| Línea: WILCOXON (CM) |
