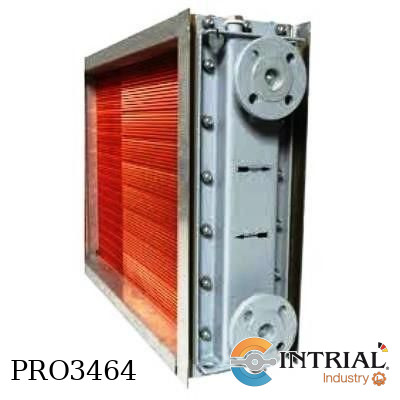

Heat Exchanger Motor/Generator Model 5KD1408B Counterflow 440Kw cooler 8 rows 2400x953

INTERCAMBIADOR DE CALOR MOLINO DE BOLAS 440kw
Modelo: 5KD1408B (Aluminium Fins) COUNTERFLOW
• Numero de parte: PR002201
• Fabricante: LUVATA (ex Coil-Tech)
• Cross Section: 2400x953
• Drawing : 119191600 RevA (Lado Derecho)
• Drawing : 119189700 (Lado Izquierdo)
EXTERNAL MEDIUM (AIR)
• Capacity: 440 kW (+12% Aprox.)
• Surface overdesign: 26 %
• Flow rate: 18.0 m³/s (30 deg C)
• Temperature in: 50.9 deg C
• Humidity in: 30%
• Temperature out: 30.0 deg C
• Humidity out: 86%
• Pressure drop: 1082 Pa
• Velocity: 8.6 m/s
• Atmospheric pressure: 747 mbar
• Altitude: 2700
INTERNAL MEDIUM (WATER)
• Flow rate: 66.0 m³/h (18.2 l/s)
• Temperature in: 22.9 deg C
• Temperature out: 28.7 deg C
• Pressure drop: 49.7 kPa
• Velocity: 2.3 m/s
MISCELLANEOUS
• Flow Type: Counterflow
COIL
• Coil type:: 5/8" Grenada
• Tube: SS 316L 0.625 x 0.035”
• Fin: Aluminium
• Fin pitch: 1.8 mm
• Finned dimension along tubes: 2400 mm
• Finned dimension across tubes: 953 mm
• No. of tube rows: 8
• No. of liquid passes: 4
• Header: Cleanable, SS316L
• Tubesheets: SS316L
• Gaskets: EDPM
• Connection size: 3” ANSI 150# Raised face
• Drip tray, bolts, Pernos: SS304L
• Face area / Heat surface: 2.38 / 603 m²
• Weight / Volume: 627 / 98 kg/l
