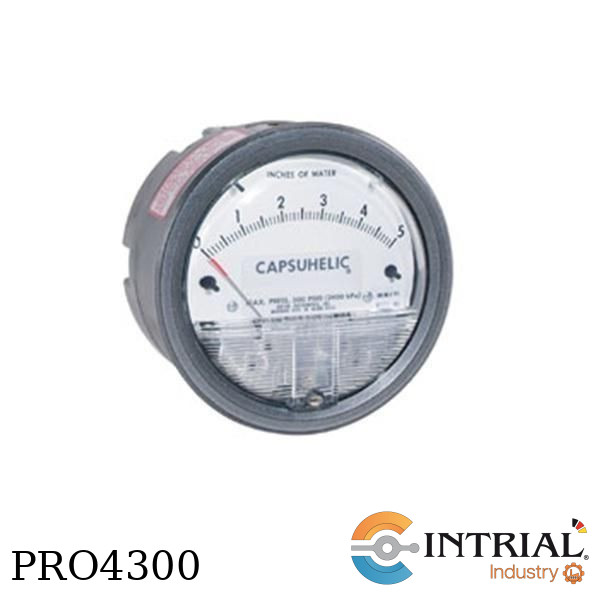

CAPSUHELIC, 500 psig, 0 - 2.0 W.C.
CAPSUHELIC SERIES
CAPSUHELIC® DIFFERENTIAL PRESSURE GAGES
Measures Pressure, Vacuum or Differential
Suitable for Internal Pressures to 500 psig
Brand: DWYER
Range, 4002: Inches of Water: 0 - 2.0
Service: Aluminum case: Air and compatible gases and oil based liquids;
Brass case: Air and compatible gases and water based liquids.
Wetted Materials: Consult factory.
Housing: Die cast aluminum with impregnated hard coating, standard.
Special material diaphragms available, contact factory.
Accuracy: ±3% of FS at 70°F (21.1°C
Pressure Limits: -20" Hg to 500 psig (-0.677 bar to 34.4 bar).
Temperature Limits: 20 to 200°F (-6.67 to 93.3°C).
Size: 4" (101.6 mm) diameter dial face.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other
position orientations.
Process Connections: 1/4" female NPT high and low pressure taps, duplicated -
one pair top for air and gas, and one pair bottom for liquids.
