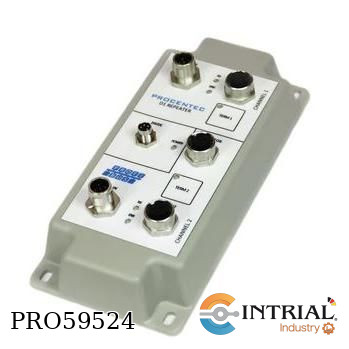

D1 Repeater PROCENTEC 125 mA @ 24 VDC 9 .. 31 VDC PROFIBUS 2x M12
D1 Repeater<br />
Brand: PROCENTEC<br />
Model: 16121<br />
PROFIBUS<br />
1 Channel (2 segments)<br />
Transparent for all PROFIBUS DP protocols<br />
Suitable for PROFIsafe and MPI<br />
9.6 kbps - 12 Mbps (auto detection)<br />
31 bus-loads per channel<br />
1200 m cable length (depends on baudrate)<br />
No limit in cascading<br />
Termination switches<br />
No address required<br />
Connectors<br />
M12 monitoring port: 2x M12 male-female per segment + 1 M12 for ProfiTrace<br />
pin 1: VPP<br />
pin 2: PB-A<br />
pin 3: DGND<br />
pin 4: PB-B<br />
Thread: Shield (PROFIBUS standard)<br />
M8 power supply<br />
pin 1: +24 VDC<br />
pin 2: +24 VDC<br />
pin 3: GND<br />
pin 4: GND<br />
Thread: Shield<br />
Current consumption: 125 mA @ 24 VDC<br />
Operating voltage: 9 .. 31 VDC<br />
