gear pump unit incl. IE3-motor, SAE 2 ½, 16MnCrS5, 50-5000 cSt, 10-60°C

PZZ-000346370
000346370 ASF6-180RD-VLFM
gear pump unit incl. IE3-motor
gear pump unit : SF 6/180 RD-VLFM
STEIMEL part-no. : ASF6-180RD-(130747R)

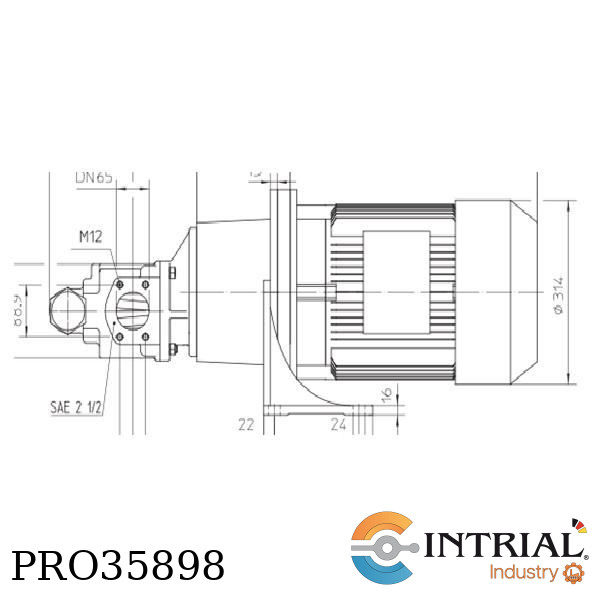

dimensional drawing : DPA056D-130747R
list of spare parts : DET056180RD--165R
suction and pressure connections : SAE 2 ½
casing parts : EN-GJL-250 (GG-25)
shafts : 16MnCrS5, case-hardened, gear wheels,
noise-optimized : EN-GJS-400-15 (GGG-40)
ionitrided, helical toothed
shaft sealing : radial shaft sealing ring
elastomers : FKM  /  flow medium : lube oil
viscosity : 50-5000 cSt  /  temperature : 10-60°C
flow rate : approx. 165 / 198 ltr/min.
pressure : 5 bar  //  speed : 950 / 1140 1/min.
pressure relief valve / opening pressure : 8 bar
range of adjustment : 2-16 bar
sense of rotation : clockwise
test run : yes, with HLPD 46
coupling : BKUA095-2442-301
pump mount with base : BLF056350188LA21
three-phase motor : LDM160-06- (Birkenbeul)
moto data
power 1/2 : 7,5 / 8,6 kW
speed 1/2 : 1000 / 1200 1/min.
voltage / frequency 1 : 400/690 Volt +/-10% at 50 Hvoltage / frequency 2 : 460 Volt +/-10% at 60 Hz
efficiency class : IE3 / degree of protection : IP 55
insulation class : F / form of construction : B 5
specially : electrically acc. to . NEMA and CSA - definish : primer HDO058 - green
type plate : ETY924-D-E--PE02
motor junction box : turned 90° to suction side!
Net weight : +/- 142 kg
OLD SERIAL-NO: PU130747 / ASF6-180RD-130747R :
no longer available.
We quoted now a replacement pump unit.
