Coriolis Massflowmeter, 2 Class 150 RF ASME B16.5-2003, SS

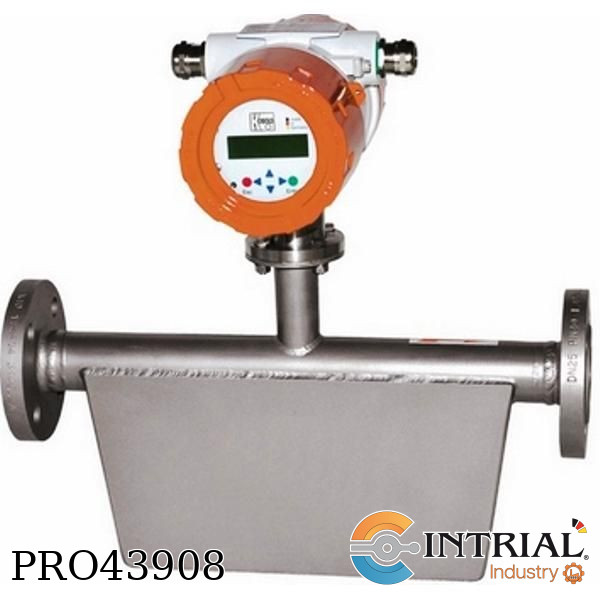

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-025-206R-A-0-0-A-L-1-1-0-H+UMC4-B-1-2-A-2-1-H</strong><br />
[TMU] Model<br />
[S] Wetted materials: Stainless steel<br />
[025] Meter line size DN25, ANSI 1", Rango: 0 a 350 Lpm<br />
[206R] Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Installation length, 650 mm<br />
[A] Containment options, Stainless steel containment <br />
[0] Heating / cooling, without<br />
[0] Connection for heating / cooling, without<br />
[A] Sensor configuration, Integral mount transmitter<br />
Process temperature -4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection: IP 66<br />
[L] Approvals, ATEX / IECEx II 1/2G Ex ia IIC T6 - T2 Ga/Gb<br />
[1] Calibration flow, Standard, 3-point<br />
[1] Calibration density, Standard (3-point)<br />
[0] Supplementary equipment, None<br />
[H] Design, Heinrich<br /><br />
Transmitter UMC4<br />
Model: UMC4-B-1-2-A-2-1-H<br />
[UMC4] Transmitter<br />
[B] Mounting, Integral mount<br />
Conduit port opening, M20 x 1,5.<br />
[1] Display / Interface board,<br />
Integral within transmitter housing, for ambient temperature up to 60°C<br />
[2] Power supply, 19 - 36V DC, 24V AC (+5% - 20%), 50/60Hz<br />
[A] Outputs:<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[2] Approvals, II(1)2G Ex d [ia Ga] IIC T3-T4 Gb (terminal compartment Ex d), ambient to 60°C<br />
[1] Type of protection, Ex [ia Ga] intrinsically safe<br />
[H] Heinrichs
