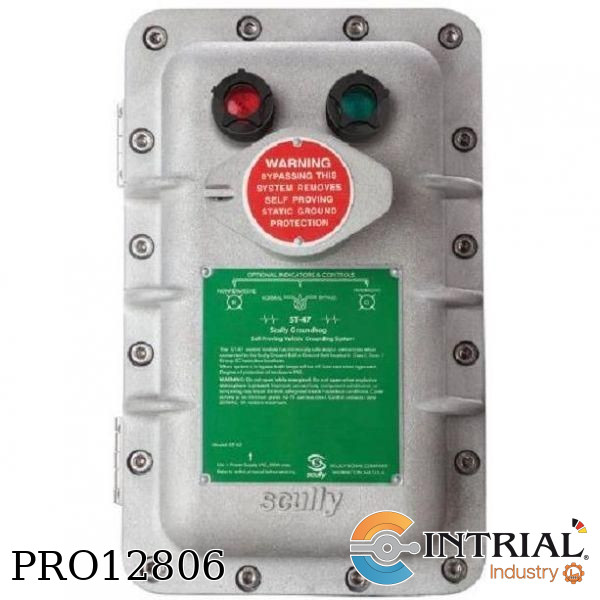

Monitor de control con lámparas e interruptor de derivación protegido con llave (funcionamiento a 11

<div><strong>Modelo:  ST-47-115 ELK -Y</strong></div>

<div><strong>MONITOR DE CONEXIÓN A TIERRA Monitor de conexión a tierra </strong></div>

<div><strong>Control Monitor with Lamps and Key Protected Bypass Switch (115 VAC operation)</strong></div>

<div>Brand: SCULLY (USA)</div>

<div>/////TECHNICAL SPECIFICATIONS/////////</div>

<div>Operation Temperature: -40° to +140° F (-40° to +60° C)</div>

<div>Enclosure: Explosion-Proof Weather-Proof</div>

<div>Housing, suf_x “E”</div>

<div>Indicators: Red-not grounded/non-permit.</div>

<div>Green-grounded/permit.</div>

<div>Response Time: 0.5 seconds maximum.</div>

<div>Electrical Connections: Internal terminal strips,identi_ed for easy installation.</div>

<div>Bypass Switch: Key lockable off-on bypass switch for ELK model only.</div>

<div>Output Control: One normally open user contact rated 250, 5A resistive load.</div>

<div>Power Requirements:</div>

<div>Y: Include: Junction Box, 10 meters Coiled Cable, Clamp</div>

<div></div>

<div>ST-47–115 Models: 105–125 VAC, 50/60 Hz. 0.250 Amperes maxim</div>

<div>ST-47–240 Models: 208–240 VAC, 50/60 Hz. 0.125 Amperes maximum.</div>

<div>Approvals: The explosion-proof housing is approvedfor •<span> </span>mounting in Class I, Division 1, Groups C & D environments •<span> </span>by FM Global (FM) and the Canadian Standards Association <span> </span>(CSA). The intrinsically safe outputs are approved for use in Class I, Division 1, Groups A, B, C and D environments by FM and CSA.</div>

<div></div>

<div>For  Tag: 5780-GSP-30130A Tag: 5780-GSP-30130B Tag: 5780-GSP-30131 Tag: 5780-GSP-30132</div>
