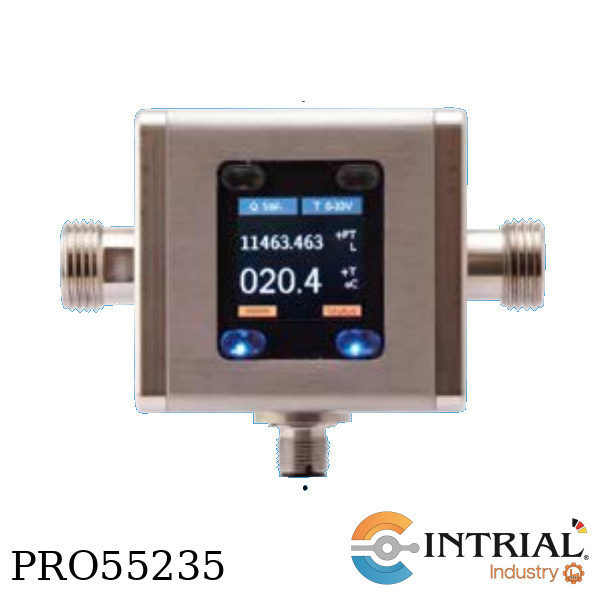

COMPACT MAGNETIC INDUCTIVE FLOW METER Kobold (Alemania) MIM-1-2-40GN9-C3T
<div>COMPACT MAGNETIC INDUCTIVE FLOW METER<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-40GN9-C3T-0<br />
[MIM-1]:<br />
Operating principle: Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor: Pt 1000<br />
Accuracy: ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity: 70 mm²/s<br />
Min. conductivity: >20 μS/cm<br />
Power supply: 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure: PN 16<br />
Protection: IP 67<br />
[2]: Material housing / insulation part / sealingt; st. steel 1.4404 / PEEK / FKM<br />
[40GN9]: Measuring range (flow/temperature); 0,8…170 GPM ; 2 “ NPT<br />
[C3T]: Evaluation electronic: Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output, Part- or grand totaliser<br />
[0]: Special version, without</div>
| Brand: KOBOLD |
| Línea: KOBOLD (CM) |
