Compacto Magnético Inductivo (0,04…10 l/min; G ½ male)

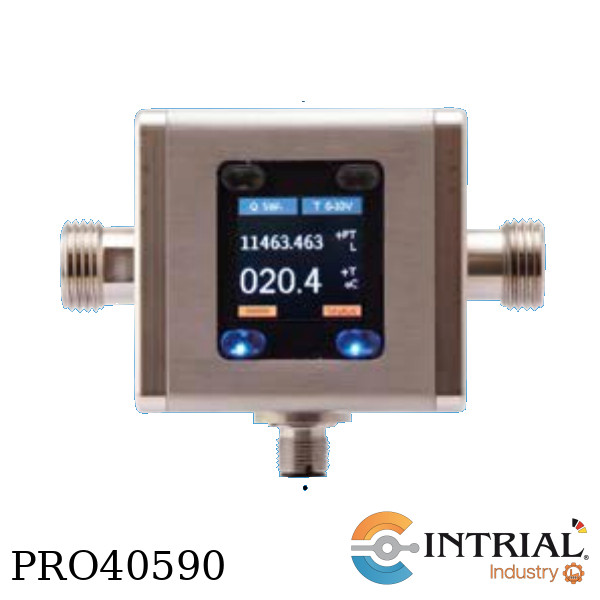

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-05HG4-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display: <br />
TFT-display, 128 x 128 color pixel, <br />
1,4", rotatable in 90° steps, <br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part, st. steel 1.4404 / PEEK<br />
[05HG4]: Measuring range (flow/temperature), 0,04…10 l/min G ½ male<br />
[C3T]: Evaluation electronic: <br />
Analogue output: 0(4)-20 mA, 0-10 V, <br />
Switching output NPN, PNP, PushPull, <br />
Frequency output, pulse output, <br />
Part- or grand totaliser.<br />
[0]: Options, without
