HIGH PRESSURE GEAR PUMPS; LA = 60/60; Ø Z = 52; 15 with PC 40 to Vg 5.5, B 17 x 14, DIN 5482

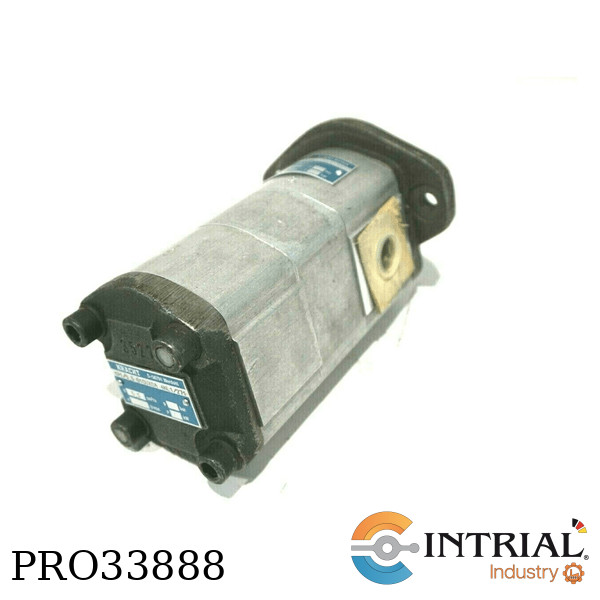

HIGH PRESSURE GEAR PUMPS<br />
Brand: KRACHT<br />
Model: KP1/16 L2LAXXF4VL1/370<br />
Size 1<br />
Nominal displacement; 16<br />
flange mounting cover; 2 bolt square flange, LA = 60/60; Ø Z = 52<br />
with O-ring (without shaft seal)<br />
Direction of rotation; Anticlockwise<br />
Outboard flanges or bearing resp.; Baring series: light<br />
Housing side ports; Inlet port dia. 15 with PC 40 to Vg 5.5<br />
Inlet port dia. 20 with PC 40 to Vg 6.3<br />
Outlet port dia. 15 with PC 35<br />
Shaft end / Shaft load capacity; Involute spline B 17 x 14, DIN 5482 / 70 Nmmax<br />
Second shaft end; Involute spline B 17 x 14, DIN 5482<br />
End covers (adaptor pieces); KP1 coupled with KP1 only<br />
Design serial no.; Specified by KRACHT <br />
Type of gearing; Driving and driven gears of case hardening steel tooth flanks grinded and honed<br />
Seals; NBR rotary shaft lip type seals ϑ ≤ 90 °C<br /><br />
Model: KP1/11 020AX0A4VL1/271<br />
Brand: KRACHT<br />
Size 1<br />
Nominal displacement; 11<br />
Direction of rotation; Anticlockwise<br />
Outboard flanges or bearing resp.; without<br />
Housing side ports; Inlet port dia. 15 with PC 40 to Vg 5.5<br />
Inlet port dia. 20 with PC 40 to Vg 6.3<br />
Outlet port dia. 15 with PC 35<br />
Shaft end / Shaft load capacity; Involute spline B 17 x 14, DIN 5482 / 70 Nmmax<br />
Second shaft end; without<br />
End covers (adaptor pieces; End cover (standard type)<br />
Design serial no.; Specified by KRACHT<br />
Type of gearing; Driving and driven gears of case hardening steel tooth flanks grinded and honed<br />
Seals; NBR rotary shaft lip type seals ϑ ≤ 90 °C
