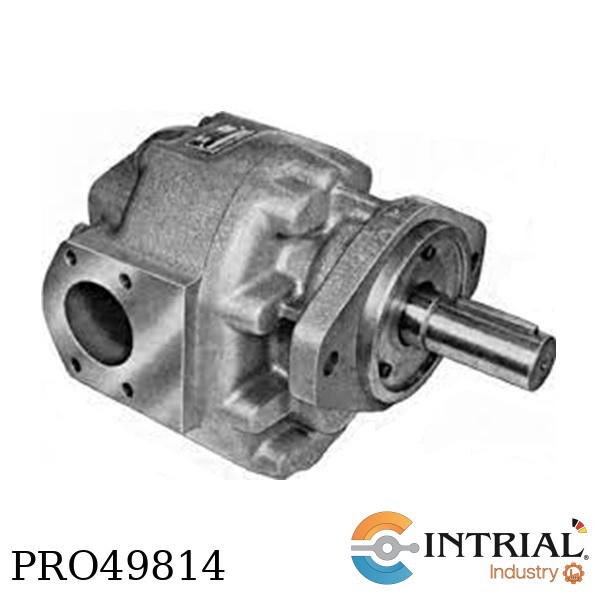

HIGH PRESSURE GEAR PUMP, -0.4...+2 bar, 196,10 cm³/r, material FKM

HIGH PRESSURE GEAR PUMP<br />
Brand: KRACHT<br />
Material Housing Grey cast iron EN-GJL 300<br />
Material Flange cover Grey cast iron EN-GJL 300<br />
Material Gears Steel, case hardened<br />
Seal material FKM<br />
Bearing Multi component sleeve bearings P10<br />
Geometrical Displacement 196,10 cm³/r<br />
Direction of rotation counterclockwise (seen on shaft end)<br />
Type of fixation V/E - SAE-C-4-bolt-flange, LA = 114,55/114,55, Ø Z = 127<br />
Outboard bearing yes<br />
Type of pipe connection K - 2 1/2" SAE (Ø 65) M12 / 2" SAE (Ø 50) M12<br />
Shaft end T - Gear shaft profile SAE-C, DP 12/24, z= 14 a= 30° 500 Nm max<br />
Operating pressure (suction side) -0.4...+2 bar<br />
max. operating pressure (pressure side) 100 bar (depending on viscosity, speed and power)<br />
Fluid temperature -20°C...+120°C<br />
Ambient temperature -20°C...+60°C<br />
Minimum viscosity 13 mm²/s<br />
Maximum viscosity 600 mm²/s<br />
Speed range 800...1800 rpm<br />
Min. Media temperature [° C] -15<br />
Speed range (depending on pressure, viscosity and power)<br />
Max. Media temperature [° C] 150<br />
Min. ambient temperature [° C] -15<br />
Max. ambient temperature [° C] 60<br />
