DETECTOR DE GAS HIDRÓGENO (0 – 1 % H2)

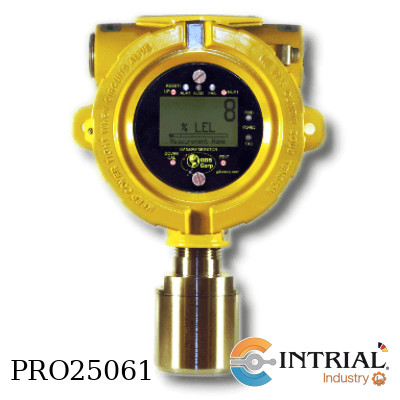

<span style="font-size:12px;"><span style="font-family:arial, helvetica, sans-serif;"><span class="value"><strong>GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications</strong><br />
- Power Input 10-30VDC at less than 0.75 watts<br />
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and<br />
- engineering units display.<br />
- Input Accepts microamp-level signals from local or remote<br />
- GDS Corp toxic or oxygen deficiency sensors<br />
- Accuracy +/- 5% of full scale range (typical)<br />
- Standard<br />
- Output<br />
- <span style="background-color:#FFFF00;">Standard 2-wire 4-20mA current sink output. Max loop R</span><br />
- is 600 ohms with nominal 24VDC power supply.<br />
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual<br />
- for additional information<br />
- Housing Aluminum housing with epoxy paint standard; #316<br />
- stainless steel optional<br />
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”<br />
- (127 mm) Shipping weight 6.5 pounds (3 kg)<br />
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for<br />
- explosion-proof installations<br />
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically<br />
- safe. IMPORTANT: Intrinsically Safe installations<br />
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.<br />
- ATEX Certified EX II 2 G EEx d IIB + H2 T5<br />
- Warranty Two years on electronics and one year on sensors.<br />
//////////CODIGOS PARA ORDENAR///////<br /><br />
GM-EC: GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications</span><br />
Chanel 1<br />
- 2: Sensor Head (</span></span>Local sensor head for splash guard<span style="font-size:12px;"><span style="font-family:arial, helvetica, sans-serif;">)<br />
- 14: Senor Type (Hydrogen)<br />
- 1: Detection Range (0 – 1 % H2)</span></span>
