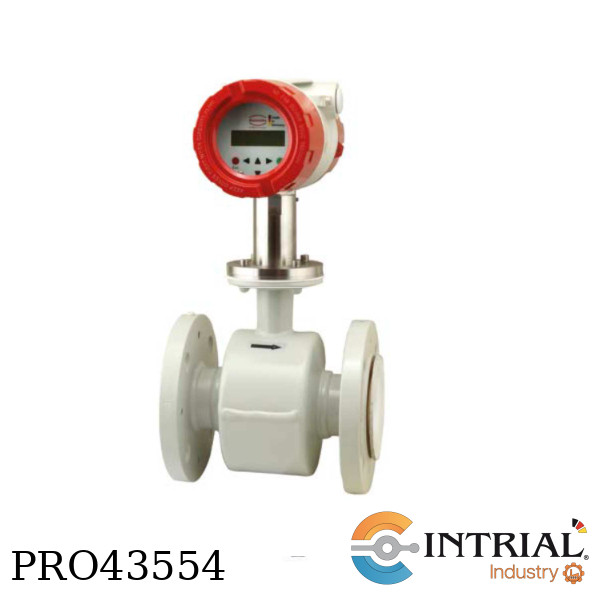

Medidor de flujo electromagnético

EPS Electromagnetic Flow Meter<br />
Brand: KOBOLD (Heinrichs)<br />
Model: EPS-H-214R-1-S-S-1-0<br />
[EPS]: Sensor Model<br />
[H]: Material Lining, Hard Rubber (Ebonite),<br />
Electrodes, Standard 2x Measuring- + 2x Ground electrodes, 0°C...95°C<br />
[214R]:Process connection, 10" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 1786 m³/h<br />
Installation length, 450 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor, IP 67<br />
[0]:Certificates, w/o<br />
<br />
Include<br />
TRANSMITTER<br />
Brand: KOBOLD (Alemania)<br />
Model: UMF2-A-1-1-G-0BK<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold
