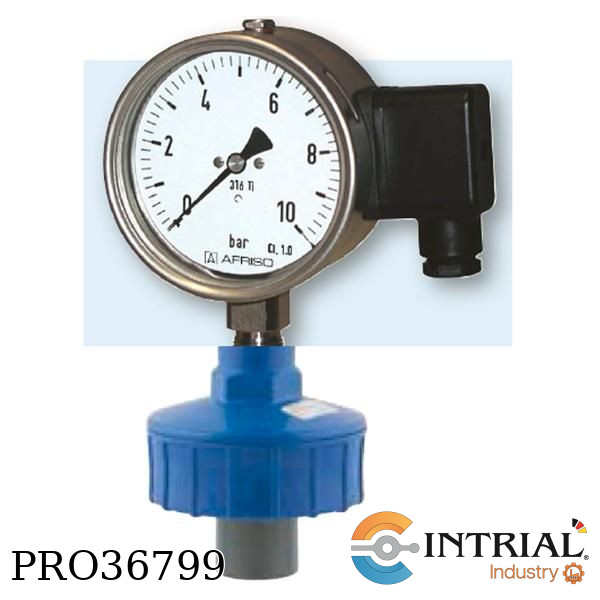

Transmisor de presion DM13 (0-10bar), con sello PVDF 1” NPT

PRESSURE TRANSDUCER DMU 13 WITH DIAPHRAGM SEAL<br />
Brand: AFRISO<br />
Measuring principal: Piezo-resistive stainless steel <br />
measuring cell and mechanical bourdon tube <br />
Range: 0 / 10 bar (relative) <br />
Dial: Single scale in bar, black "AFRISO" - logo, black <br />
Accuracy: Transmitter: <± 0,35% FSO acc. to IEC 60770 <br />
Analog reading: Class 1,0 (EN 873-1/6) <br />
Temperature ranges<br />
Ambient temperature –20°C up to +60°C <br />
Medium temperature –20°C up to +100°C <br />
Storage temperature -40/+70°C <br />
Housing: 100 mm, stainless steel 1.4301 with solid baffle wall and blow out at back <br />
Filling: Paraffin oil (FM 09) FDA-listed <br />
Wetted parts: Stainless steel 1.4571and 1.4404<br />
seals FKM (Viton) <br />
Connection: G ½ B (EN 837) bottom <br />
Power supply: DC 12-36 V <br />
Output: 4-20 mA / 2-wire <br />
Cable connection: Junction box <br />
Diaphragm seal: MD 11 (AN 33975)<br />
Connection: G1/2 female, screwed connection<br />
PN 10<br />
Diaphragm: EPDM, TFM-coated, internal<br />
Body material: PVDF<br />
Transmission liquid: Glycerine (FM 03)<br />
Option: PVDF 1” NPT Male <br />
and calibration certificate, 3 point<br />
