AIR VELOCITY TRANSMITTERS 4 to 20 mA, 0 to 50°C., 24 VDC ±20%, 5 digit LCD

AIR VELOCITY TRANSMITTERS<br />
Brand. Dwyer<br />

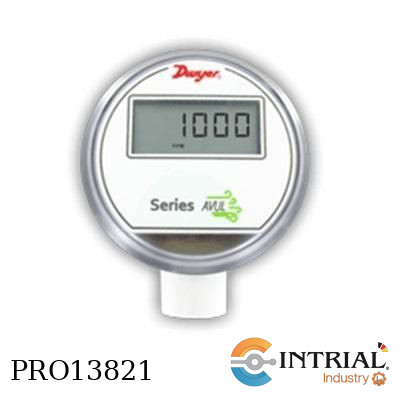

[AVUL-5DA1-LCD]: Air velocity transmitter, 5% accuracy, duct mount, Universal current/voltage outputs, with LCD.<br />
Service: Clean air and non-combustible, compatible gases.<br />
Range: 1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s); Field selectable.<br />
Temperature Limits: 0 to 50°C.<br />
Power Requirements: 24 VDC ±20% or 24 VAC ±20%.<br />
Humidity Limits: 5 to 95% RH, non-condensing.<br />
Output Signals: 4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC.<br />
Response Time (90%): 10 s, typical.<br />
Zero & Span Adjustments: Digital push buttons.<br />
Output Load Resistance: Current output: 0 to 1100 Ω max.; Voltage output: Minimum load resistance 1 kΩ.<br />
Current Consumption: 60 mA max.<br />
Display (optional): 5 digit LCD.<br />
Electrical Connections (Analog): Power and output: four-wire removable<br />
European-style terminal block for 16 to 26 AWG.<br />
Electrical Entry: 1/2" NPS thread. Accessory (A-151): Cable gland for 5 to 10 mm diameter cable.<br />
 Mounting Orientation: Flow direction must be parallel to the sensor tip.
