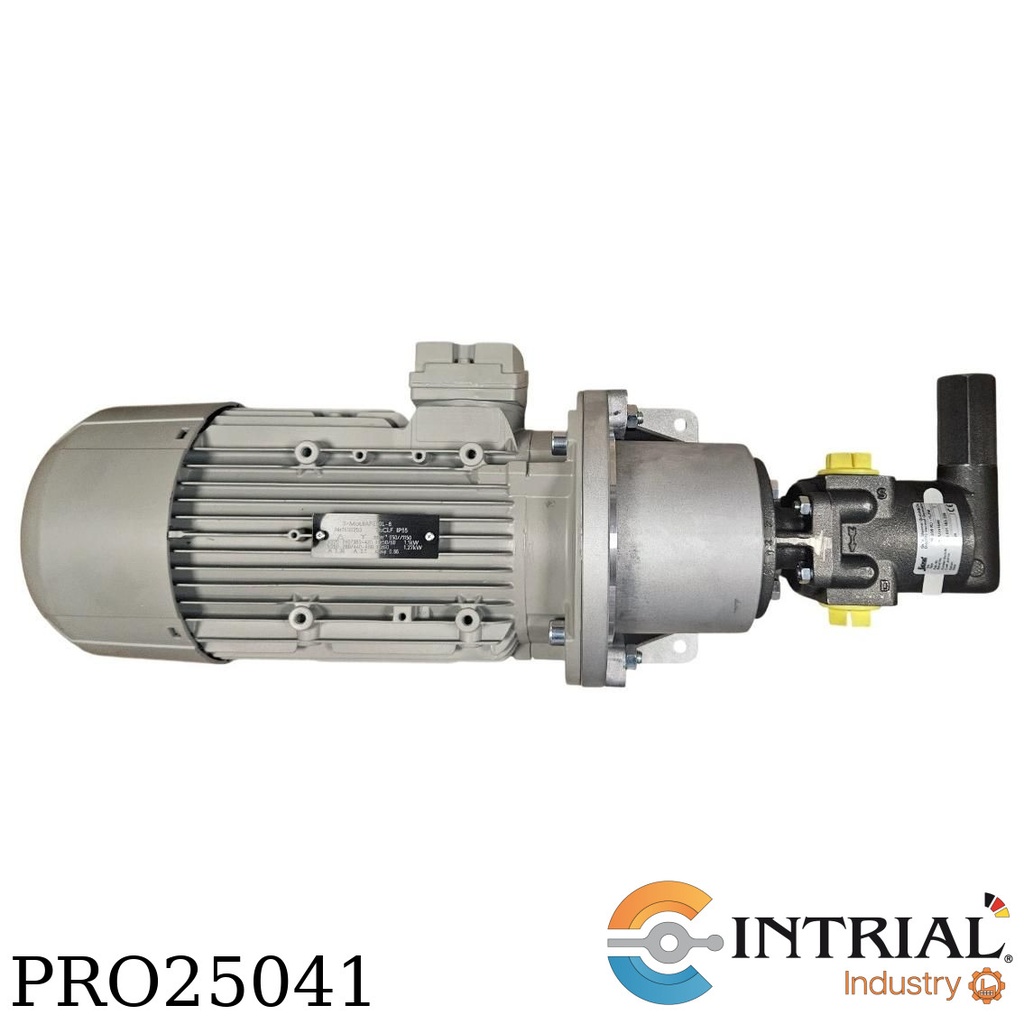

Gear pump unit: SF 2/20 RD - VLFM

<p class="MsoNormal">GEAR PUMP<br />
Brand: STEIMEL<br />
Model: SF 2/20 RD - VLFM<br />
material no: ASF2-20RD-170734R<br />
dimensional drawing: DPA052D-170734R<br />
spare parts list: DET052020RD--165R<br />
suction and pressureport: G 1 / SAE 1<br />
casing: EN-GJL-250 (GG-25)<br />
pinion shafts, noise-optimized: 16MnCrS5, egh., helical toothed<br />
bearing: multi layer<br />
sahft sealing: radial shaft sealing ring<br />
elastomer: FKM<br />
flow medium: lube oil<br />
viscosity: 50-5000 cSt.<br />
temperature: 10-60°C<br />
flow rate: 18 / 21,6 l/min.<br />
pressure: 5 bar<br />
speed: 950 / 1140 1/min.<br />
PRESSURE RELIEF VALVE<br />
range of adjustments: 2-20 bar<br />
opening pressure: 8 bar<br />
sense of rotation: clockwise<br />
test run: yes, mit HLPD 46<br />
coupling: BKUA040-1424-301<br />
pump mount with base: BLF052200110LA21<br />
three phase motor: LDM090-06-095<br />
MOTOR DATA<br />
power 1/2: 1,1 / 1,2 kW<br />
speed 1/2: 1000 / 1200 1/min<br />
voltage / frequency 1: 230/400 Volt bei 50 Hz<br />
voltage / frequency 2: 265/460 Volt bei 60 Hz<br />
efficiency class: IE3<br />
degree of protection: IP 55<br />
insulation class: F<br />
add. plate (without IE3) for:<br />
voltage / frequency:  <br />
- 220-240/380-420 V bei 50/60 Hz<br />
- 250-280/440-480 V bei 60 Hz<br />
form of construciton: B 5<br />
finish: without<br />
type plate: ETY924-D/E--PE02<br />
motor junction box turned 90° to suction-sid</p>
