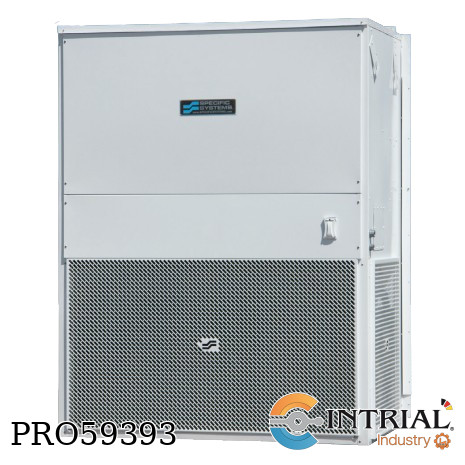

AIRPAK WALLMOUNT HVAC SYSTEM SPECIFIC SYSTEMS A420-CXTWRAGW-AEAE00AXXXXXLX

AIRPAK WALLMOUNT HVAC SYSTEM<br />
Brand: SPECIFIC SYSTEMS<br />
Model: A420-CXTWRAGW-AEAE00AXXXXXLX<br />
01. AirPak Capacity: 20-Ton Capacity (70.50 kW)<br />
01. AirPak Standard Features:<br />
Industrial packaged environmental control system with the following standard features:<br />
• Designed for use in a non-hazardous environment<br />
• UL 508A Electrical panel certification<br />
• 2-inch MERV-8 return air filtration<br />
• All stainless steel fasteners<br />
• Stainless steel drain pan<br />
• TEFC condenser motor<br />
Refrigeration system:<br />
• Interlaced dual circuit evaporator and condenser coils<br />
• High pressure switch (both cooling stages)<br />
• Low pressure switch (both cooling stages)<br />
• Hot gas bypass (both cooling stages)<br />
• Thermostatically-controlled expansion valve<br />
• Freeze stats (evaporator anti-icing, both stages)<br />
• Two hermetically-sealed scroll compressors<br />
02. Cabinet Size: 72W x 94H x 42D<br />
03. Panel Design: Advanced split panel design for separation of high and low voltages<br />
Voltage sensitive Items include:<br />
• Motors<br />
• Compressors<br />
• Overloads<br />
• Transformers<br />
• Contactors<br />
• Crankcase heaters<br />
03. Voltage Configuration: 460-480V / 3ph / 60Hz<br />
04. Airflow Configuration: To the Wall-mount, Horizontal Reverse Airflow<br />
05. Cabinet Material: Galvanized Steel (Standard)<br />
06. Cabinet Coating: White Powdercoat<br />
07. Coil Material: Copper Tube/Aluminum Fin (Standard)<br />
08. Coil Coating: Electrofin Both Coils<br />
09. Refrigerant: R-410A, Standard model operating temp range up to 122°F (50°C)<br />
10. Low Ambient Description:<br />
For operation of mechanical cooling down to -40° F/C<br />
Low ambient controls on both stages of cooling includes the following:<br />
* (2) refrigerant receivers<br />
* (2) head pressure control valves<br />
11. Return Grille: Included<br />
12. Supply Grille: Included<br />
13. Outside Air Hood : Includes:<br />
• Manually operated quarter-turn damper<br />
• Easily replaceable MERV-8 filter<br />
14. Circuit Breaker:<br />
Disconnect/Circuit Breaker: For use in non-hazardous application<br />
* Appropriately sized for system with options chosen<br />
* Unit-mounted in panel<br />
* Lockable handle-type switch<br />
15. Unit Control: Single unit control<br />
16. Control Package: Standard Unit Controls<br />
17. Communication Protocol: Specific Standard<br />
18. Thermostat Included LCD thermostat designed for multi-stage control with<br />
• large backlit display<br />
• +/- 1°F (0.5°C) accuracy<br />
• remote sensor compatibility<br />
19. Standard Submittal: Order Summary Provided: Documentation:<br />
<br />
***Replacement for Job T-13071-01***
