​MAGNEHELIC Diferential Pressure, 0-10" columna de agua, 2 psi (13.79 kPa), 4”

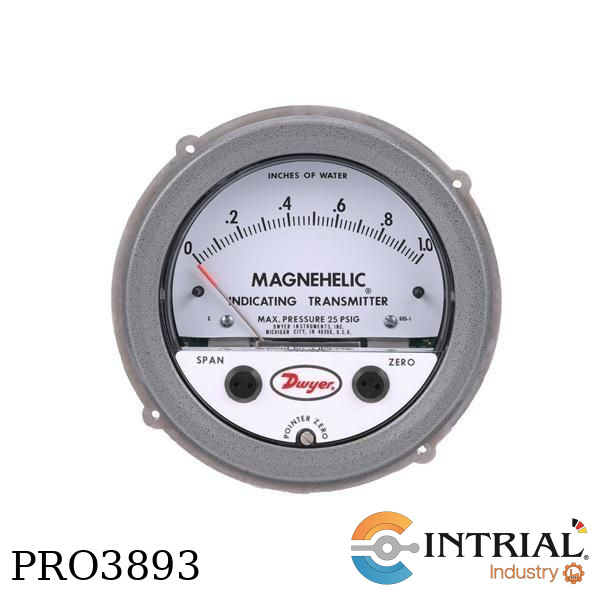

MAGNEHELIC® DIFFERENTIAL PRESSURE INDICATING TRANSMITTER<br />
Brand: DWYER<br />
Rane: 0-10" in w.c.<br />
GAGE SPECIFICATIONS<br />
Service: Air and non-combustible, compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: See chart.<br />
Stability: ±1% FS/yr.<br />
Pressure Limits: See chart.<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).<br />
Process Connections: 1/8˝ female NPT.<br />
Size: 4˝ (101.6 mm) dial face, 5˝ (127 mm) OD x 2-11/16˝ (68.3 mm); -SS bezel:<br />
4-3/4˝ (120.7 mm) OD x 2-21/32 (67.5 mm).<br />
Weight: 1 lb 12.6 oz (811 g).<br />
Agency Approvals: CE.<br />
TRANSMITTER SPECIFICATIONS<br />
Accuracy: See chart (includes linearity, hysteresis, repeatability).<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).<br />
Compensated Temperature Range: 32 to 120°F (0 to 48.9°C).<br />
Thermal Effect: ±0.025% FS/°F (0.045% FS/°C).<br />
Power Requirements: 10-35 VDC (2-wire).<br />
Output Signal: 4-20 mA.<br />
Zero and Span Adjustments: Protected potentiometers.<br />
Loop Resistance: DC: 0 to 1250 Ω max.<br />
Current Consumption: DC: 38 mA max.<br />
Electrical Connections: Screw terminal block.<br />
Mounting Orientation: Diaphragm in vertical position. Consult factory for other<br />
position orientations.
