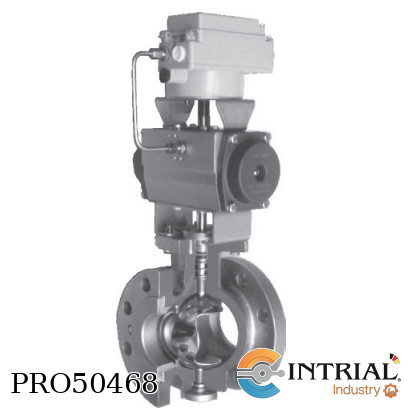

Válvula Segmentada de 4"+ Actuador Eléctrico

<div>Válvula Segmentada de 4"+ Actuador Eléctrico<br />
Type 3310 Segmented Ball Valve 8 <br />
With flanges and segmented ball with double polygon; Standard <br />
direction of flow; Valve body size NPS 4; ANSI Class 150; Body <br />
stainless steel 1.4408/A351 CF8M; Flanges RF with raised face <br />
acc. to ANSI B16.5; Kvs 600/Cv 700 with 90° opening angle; Equal <br />
percentage characteristic; Ball material 1.4409/A351 CF3M <br />
chrome-plated; Type A seat, metal seal; Seat material: AP1C; <br />
PTFE body gasket; Shaft material 1.4404/316L; Graphite gasket <br />
with meat seal for short shaft; Connecting flange acc. to ISO 5211 <br />
F10; With square drive 22; V-ring packing, PTFE-carbon, <br />
spring-loaded; Single packing; Standard bearing <br />
VarID: 100078103<br />
........................................................................<br />
Actuador Eléctrico AUMA<br />
DUMMY <br />
Part-turn actuator type: SQR 05.2 || Voltage: 1ph/110-120V/60Hz <br />
Duty: S4-20% intermittent duty, class C acc. to EN 15714-2 <br />
Actuator controls AUMATIC type: AC01.2 <br />
Valve attachment: || UN || 150 Nm || 9.0 s / 90 ° <br />
Communication: Profibus DP +I/O<br />
........................................................................<br />
Kit de Montaje<br />
DUMMY<br />
Número de parte: SAM3310SQR5.2</div>
