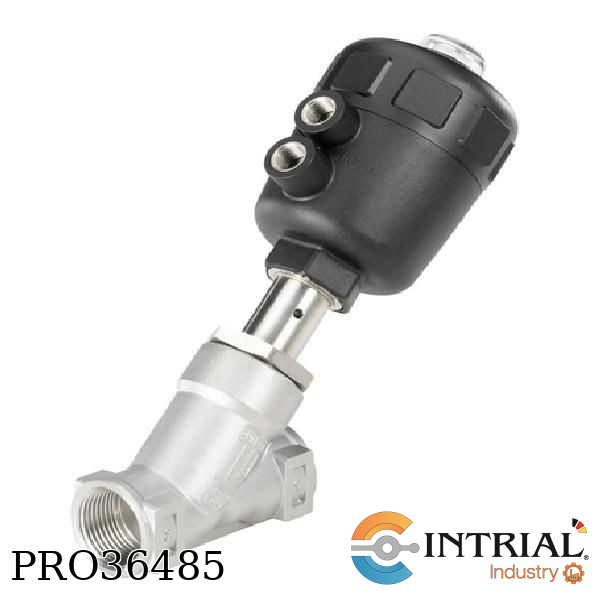

VÁLVULA NEUMATICA, 2 ways / 2 position, 20,0 - 20mm (3/4")
<div>VÁLVULA NEUMATICA</div>
<div>Marca: BURKERT</div>
<div>Control function: A - closed by spring force</div>
<div>Paths/positions<span> </span>2 - 2 ways / 2 position</div>
<div>Orifice size: 20,0 - 20mm (3/4")</div>
<div>Seal material: EE - PTFE</div>
<div>Material: VA - stainless steel</div>
<div>Port connection: GM85 - G3/4 threaded port</div>
<div>Actuator versión: D - PPS-actuator, VA-threaded bushing at connection of pilot air</div>
<div>Actuator size: C - Dm 40mm</div>
<div>Variable code 1<span> </span>PX51 - EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 Gb / Ex h IIIC T135°C Db</div>
<div>Pressure (bar) (min): 0</div>
<div>Pressure (bar) (max): 6,5</div>
<div>STD (min): 4</div>
<div>STD (max): 10</div>
<div>Medium temperature (degree C) (min)<span> </span>-10</div>
<div>Medium temperature (degree C) (max)<span> </span>180</div>
<div>Ambient temperature (min): 5</div>
<div>Ambient temperature (max): 140</div>
<div>KV value (M*3/H): 7,0</div>
| Brand: Bürkert |
| Línea: Bürkert |
