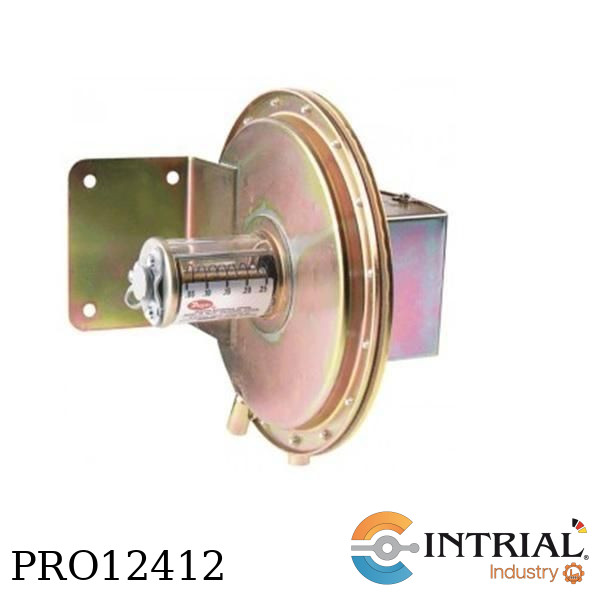

LARGE DIAPHRAGM PRESSURE SWITCH, 0.20 a 1.0" w.c, -30 to 110°F
LARGE DIAPHRAGM PRESSURE SWITCH<br />
Brand: DWYER<br />
Large diaphragm pressure switch<br />
Range 0.20 a 1.0" w.c.<br />
Approx deadband @ 0.04 min. <br />
Set point, 0.06 max. set point.<br />
Service: Air and non-combustible,compatible gases.<br />
Temperature Limits: -30 to 110°F (-34.4 to 43.3°C).<br />
Pressure Limits: 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge<br />
Switch Type: SPDT.<br />
Repeatability: ±1%.<br />
Electrical Rating: 15 A @ 120-480 VAC,60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4<br />
HP @ 250 VAC, 60 Hz.<br />
Electrical Connections: 3 screw type,common, normally open and normally closed.<br />
Process Connections: 1/8" female NPT.<br />
Mounting Orientation: Diaphragm in<br />
vertical position<br />
Set Point Adjustment: Screw type with enclosed scale.<br />
Agency Approvals: CSA, FM, UL.
| Brand: DWYER |
| Línea: DWYER (CM) |
